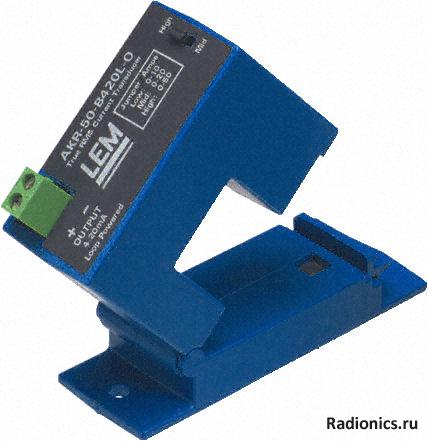

Датчик LEM, AKR50 B420L
Accuracy ±1 %
Frequency Bandwidth 10 → 400 Hz
Input Current Range 50 A rms
Maximum Cable Diameter 21.7mm
Maximum Operating Temperature +50°C
Minimum Operating Temperature -20°C
Mounting Type Panel
Output Current Range 4 → 20mA
Overall Depth 30mm
Overall Height 57.2mm
Overall Width 89.7mm
Supply Voltage 150 V ac, 24 V dc
Transformer Type Split Core |
